ILS Synergy GK

Improve your presentation delivery. Present with ease and confidence.

Datasheets

• ILS Synergy GK Datasheet (PDF)

Be future proof! The Synergy GK with 32" WACOM

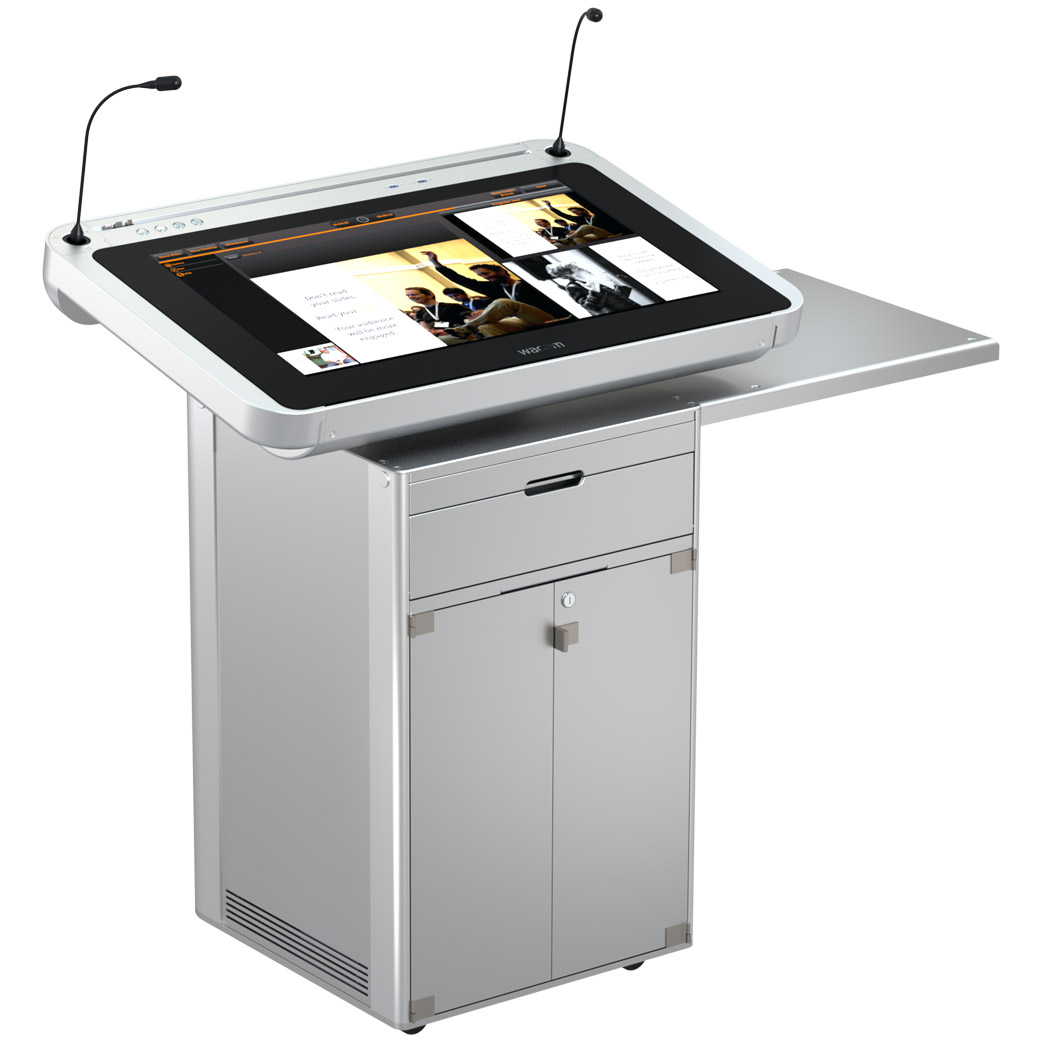

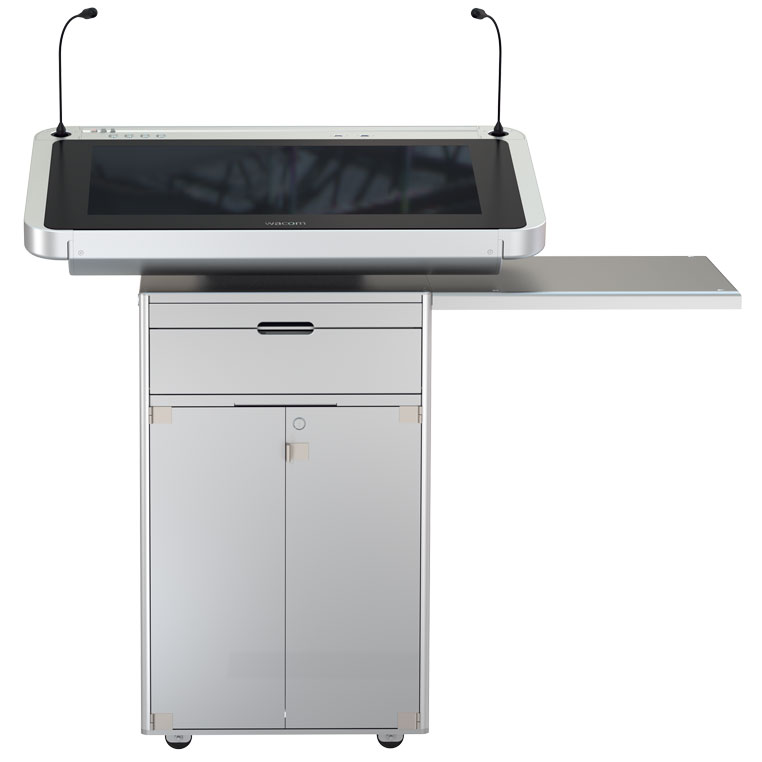

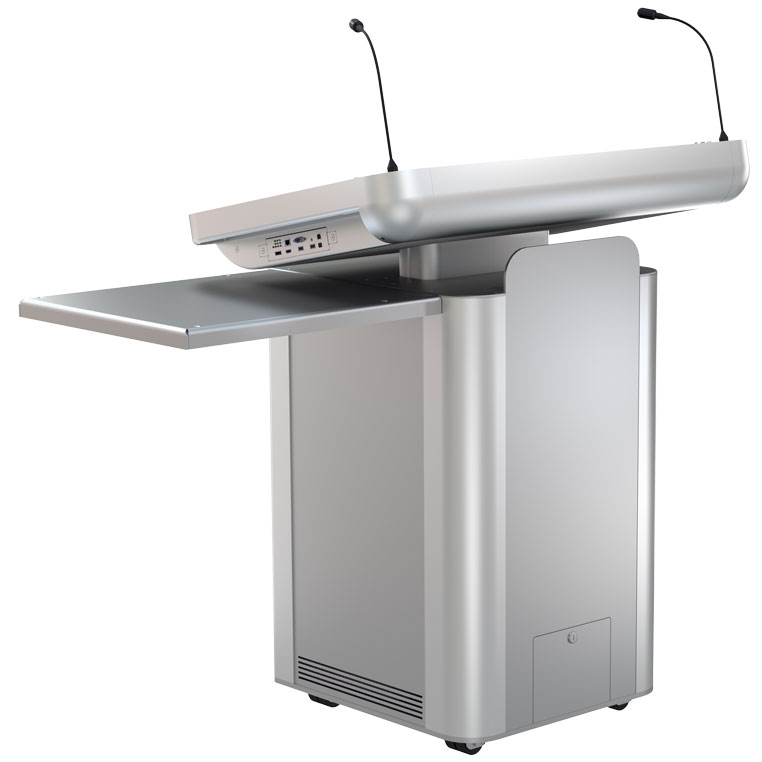

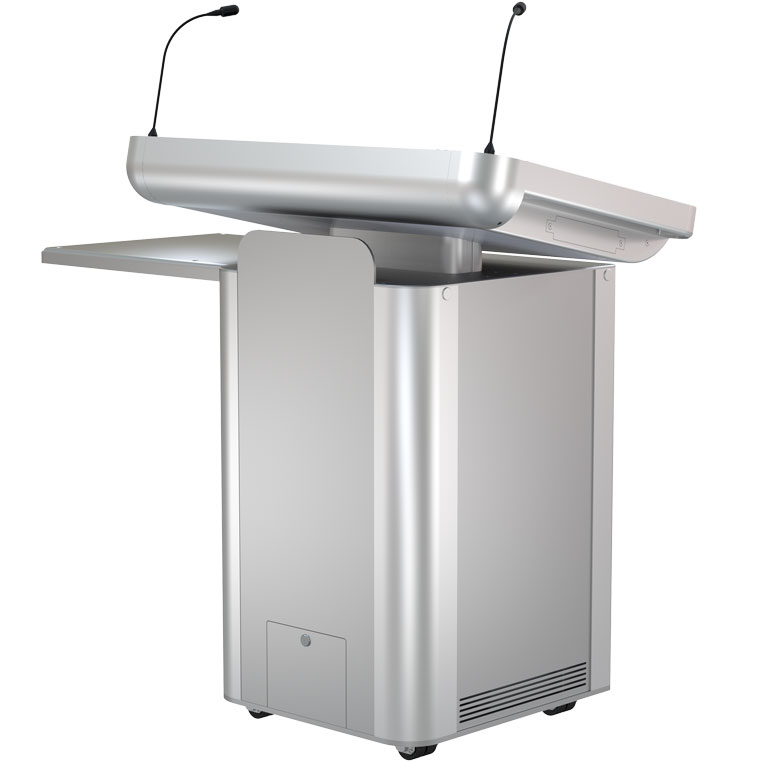

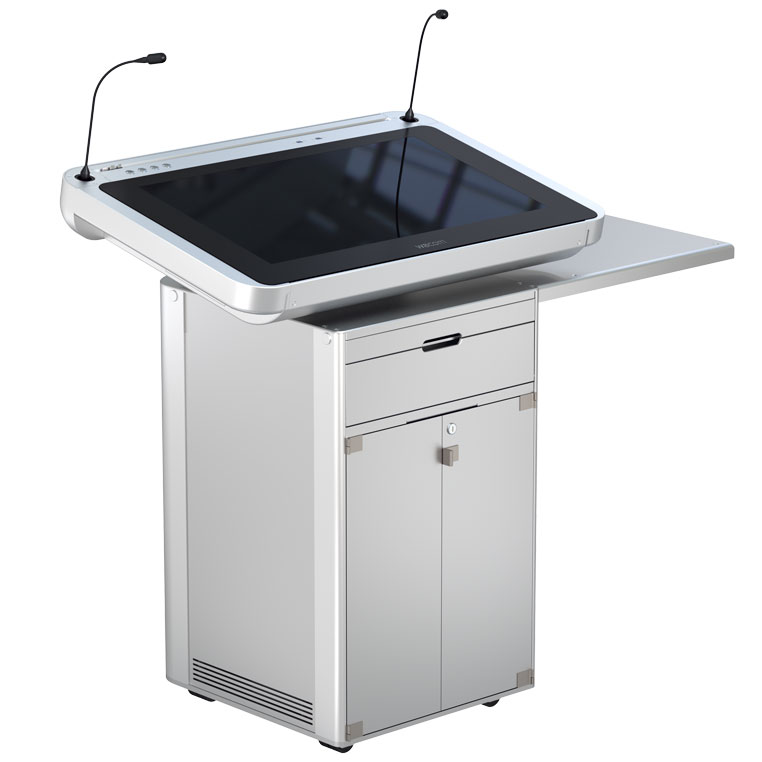

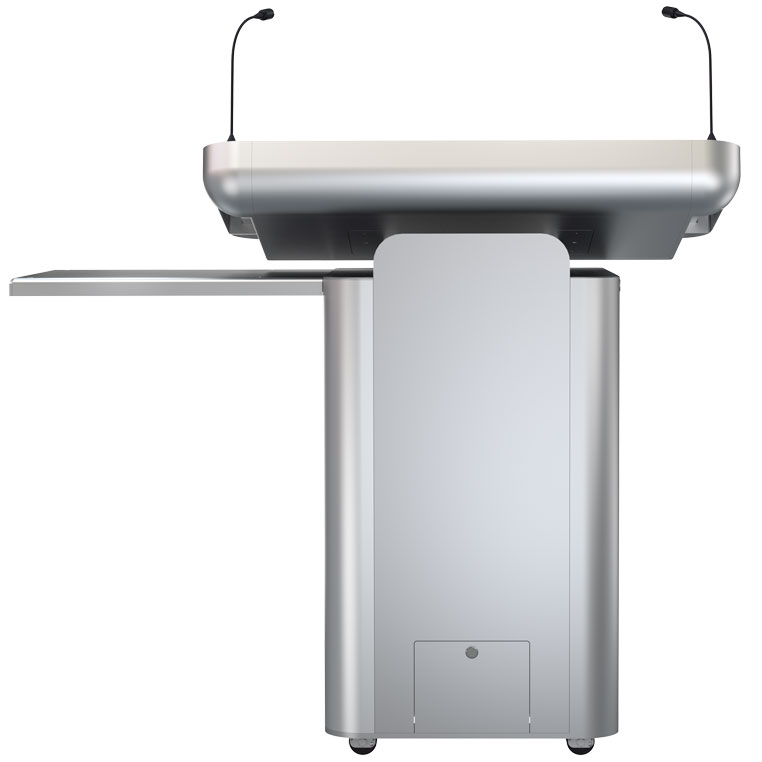

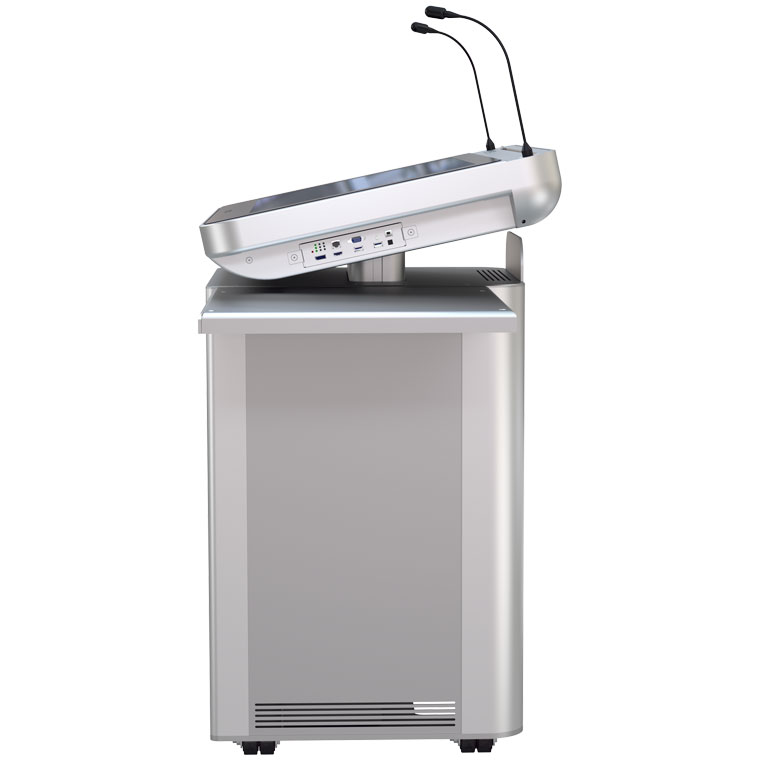

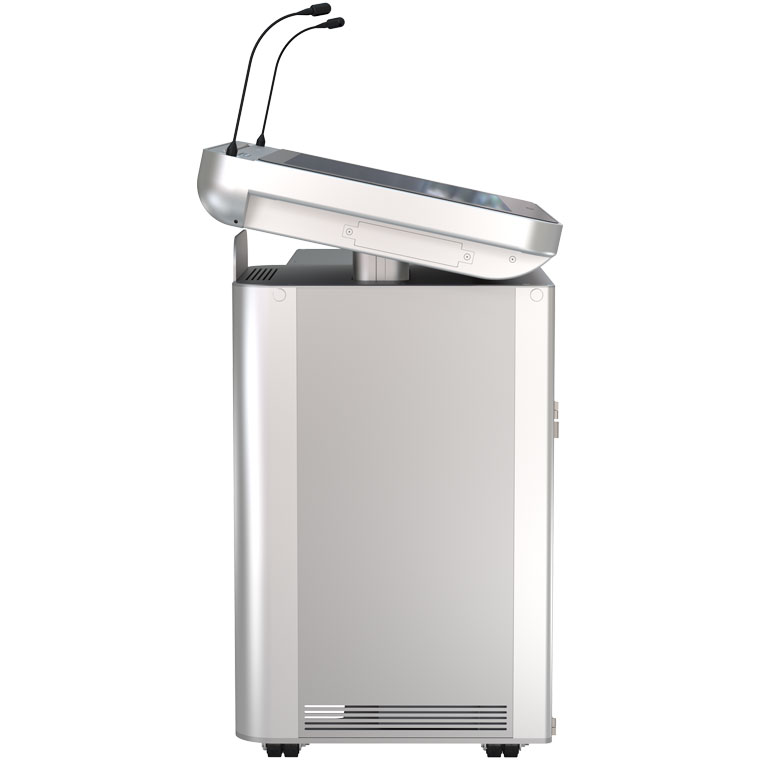

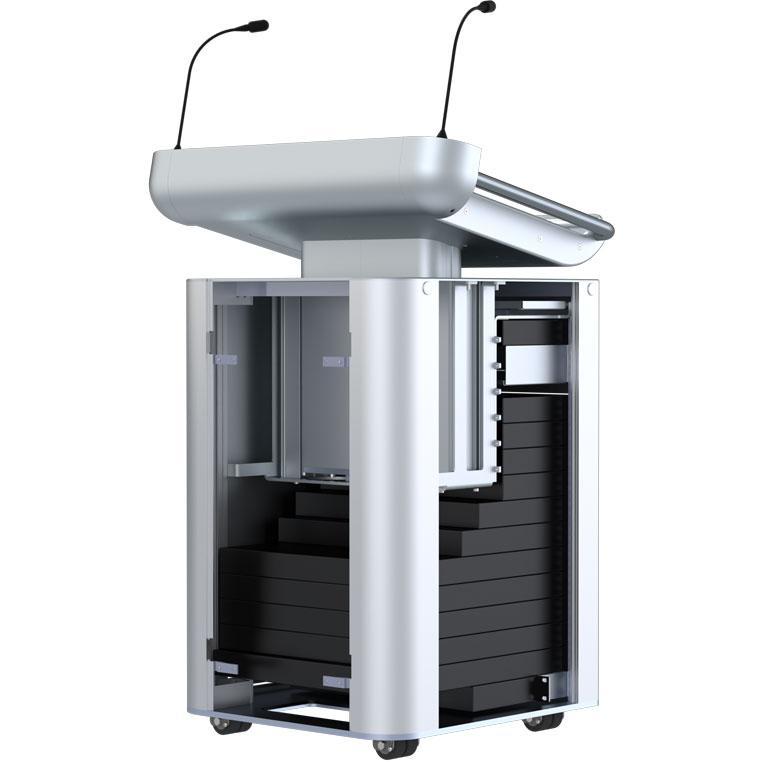

ILS Synergy GK delivers ILS quality with a smart design. The solid top of the lectern is placed on a compact, motorized wide cabinet (14U Full Rack Cabinet) with a height adjustment range up to 23 cm (9”+). Two buttons will help you to control it.

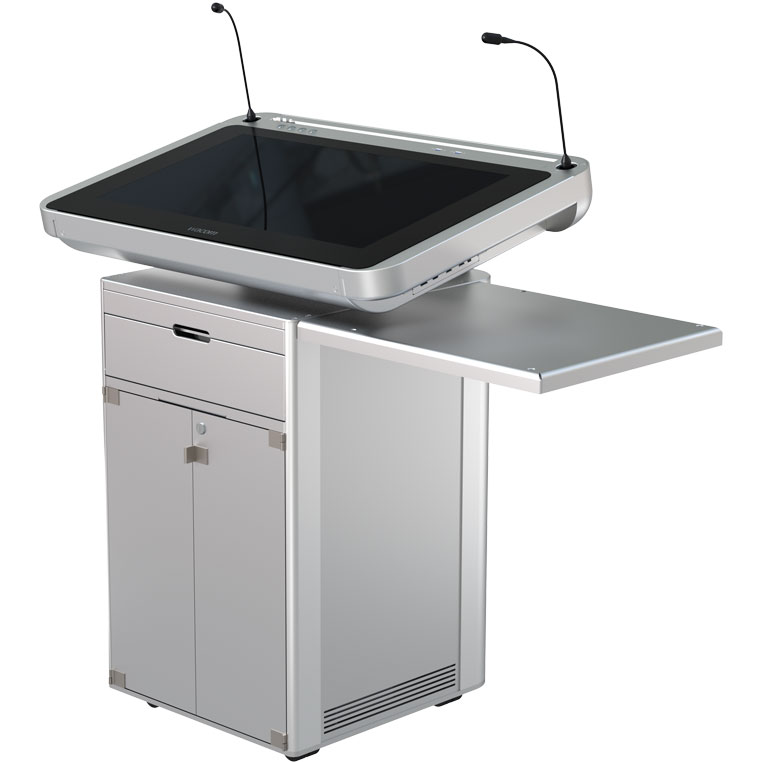

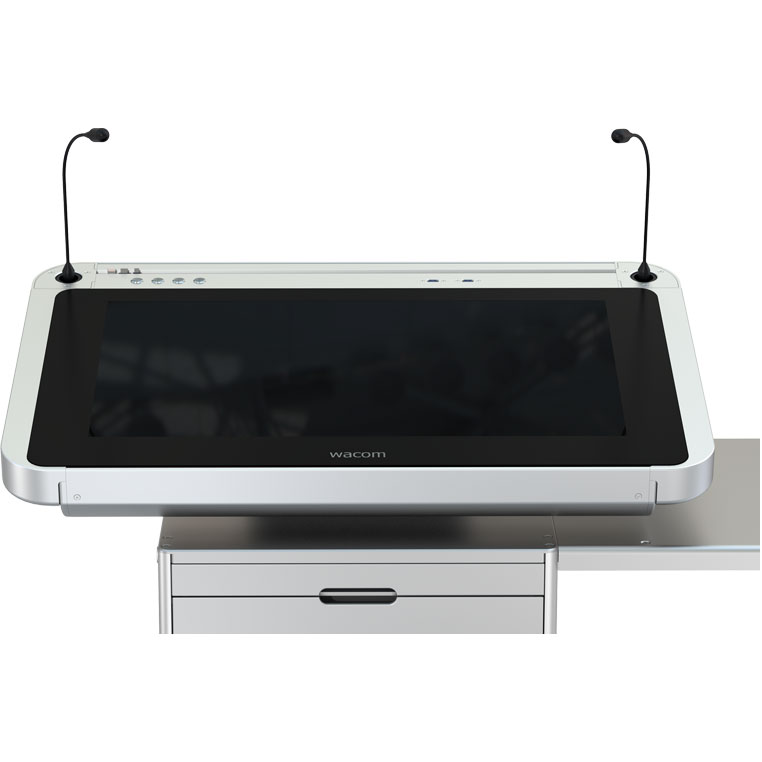

The Synergy GK is the ideal smart solution for PC presentation. A holder for the micro PC is installed inside the working surface, and the integrated VESA mount allows the installation of a monitor up to 40”. This Synergy model is specially designed for the 32” WACOM 3220. This solution also provides one horizontal side table (can be upgraded to the 1 or 2 flip or sliding tables). This makes it possible to use handwritten notes, laptop, or place a document camera on it. The built-in switcher or four sockets with the type on request will be great helpers when handling connections between the main screen of the lectern and/or laptop, or other devices. To do this, there are four buttons on the top panel of the product.

There are also two USB 3.0 sockets and a holder with built-in charging cables for tablets and smartphones. The microphone socket is of the XLR shock-mount type. The cabinet has a keyboard drawer, one lockable compartment and a trap door for quick cable access.

For ease of movement and stability of the lectern during the presentation, four lockable smart castors are provided. In addition, we will be pleased to engrave your logo on the front panel of the lectern, in case of using the system in formal events!

Recommended use:

• conventions
• corporate
• training
• university

Technical specifications:

Dimensions
Width	Top: 93cm x 61cm Side Plate: 34,5cm x 48cm Top + Side Plate: 127,5cm Cabinet: External: width: 52cm height: 805,cm depth: 56cm Internal: width: 48,5cm height: 16cm (from lift to top) 43cm (from lift to bottom) depth: 25,5cm (from lift to top) 55cm (from lift to bottom)
Height	User side min: 97cm, max: 117cm Audience side min: 109,5cm, max: 139,5cm
Weight	100kg
Integration
Display & PC	Monitor: 32” WACOM 3220 2160p IPS; Pen; 10 points capacitive touchscreen; PC: Dell Optiplex 3070 micro Intel Core I-5 CPU; 8GB RAM; 256GB SSD;
Accessories	Audio: 1 x Microphone: AKG CGN 99
Features	VESA 100x200 mount to hold a monitor up to 40” ILS holder for micro PC installation inside working surface 14U Full Rack Motorised Cabinet 20cm range height 6 x Buttons (2 x Height control up to 20cm range; 4 x Signal switch;) 1 x Side Table (Right) 1 x Keyboard drawer 2 x Lockable compartments (1 x Metal Drop down door; 2 x Doors;) 4 x Lockable smart castors or sideway rollers
Connectivity
Top dashboard	1 x 3-Pin XLR Shock Mount for microphone 1 x extra shock mount 3-Pin XLR pin socket for microphone (or 1 x regular mount 4-Pin XLR socket for the reading light) Integrated computer expansion ports: 2 x USB Sockets for external USB devices Ultra wide tablet holder for control panels and tablets with Charging cables (USB type-C; Lightning; micro USB;)
Side connectivity	ILS503 Switcher or 4 x sockets (type on request) - Laptop connectivity
Bottom cabling	External display connection 1 x HDMI and/or 1 x HDbaseT Microphone output: XLR cable per microphone 1 x 3,5mm Audio 1 x AIO PC LAN 1 x Switcher Control 1 x AC Power
