ILS Synergy DW

Improve your presentation delivery. Present with ease and confidence.

Synergy DW

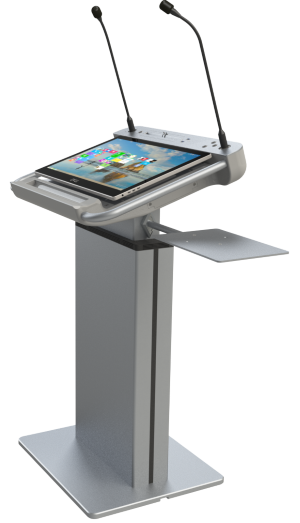

Be future proof! The Synergy DW holds a 23"-27" All in One Touch PC.

This attractive lectern package comes on a straight 43 cm wide height adjustable pedestal that is machined out of strong thick aluminum. It has generous tilt ability(tilt mechanism should be part of the All-in-one PC) for a comfortable viewing angle. You can comfortably lean on the handrail around the 24" monitor without risking disturbing the screen.

Popular Touch PC instalations are:

  • 24" Dell All-in-One 7459
  • 24" Dell All-in-One Optiplex 7440
  • 27" Lenovo AIO A910.

Alternatively you can insert your own Touch PC - call us to discuss compatible models. The Synergy Universal top lets you quickly exchange inserts, so you can easily switch to a simple wooden - Synergy WW or aluminum surface - Synergy AW.

Recommended use:

  • conventions
  • corporate
  • training
  • university

Connectivity:

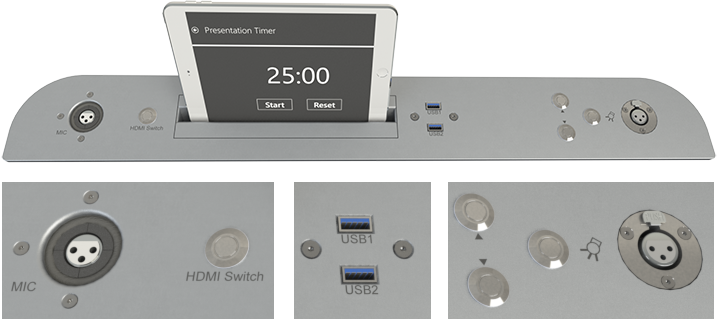

Top dashboard comes with 2 x XLR microphone sockets:

  • One XLR socket is 3-Pin shock mount microphone socket.
  • Second can be configured as 3-Pin XLR for second microphone or 4-Pin for reading light.

Pedestal Up/Down buttons and 2 x USB sockets.
Horizontal side tables, a HDMI switcher, VGA connector loop-through.

Technical specifications:

Dimensions
Width No side plates: 20cm pillar, 70cm top
With side plates: 140cm top
side plate size: 36cm x 26cm
Height User side min: 80cm, max: 120cm
Audience side min: 94cm, max: 134cm
Weight 60kg
Integration
Computer Support Display is integrated into computer - All In One Base is clamped into the lectern. Display wooden surface option to cover the display. All In One Touch PCs compatibale: Dell Inspiron 24” 7459 Lenovo 27” AIO A740, new Lenovo 27” AIO A910
Audio 1 x shock mount XLR socket 1 x regular mount XLR-3 pin Socket for microphone (or 1 x regular mount XLR-4 pin for the reading light) Optional 4 speakers integrated into the top with 280W amplifier.
Connectivity
Side connectivity panel Laptop connectivity: HDMI, DP, VGA and 3.5 Audio, Ethernet
Integrated computer expansion ports:
2 x USB Sockets for external USB devices
Top dashboard 8” wide tablet holder for control panels and tablets with integrated Apple Lightning and/or Micro USB charging plugs Integrated computer expansion ports: 2 x USB Sockets for external USB devices
Bottom cabling Second display connection HDMI of integrated computer
HDMI, DP, VGA and 3.5 Audio cables from connectivity side panel or integrated 4x1 HDMI switcher with one HDMI/CAT6 output cable in the bottom.
Ethernet, Power, Microphone output: XLR cable per microphone
